Snapmaker Rotary Module (Harmonic Drive Version)

Name: Snapmaker Rotary Module (Harmonic Drive Version)
Brand: Snapmaker
SKU: 71012
Price: 329.0 USD
Availability: InStock

$329.00 ~~$599.00~~

Product Overview

• 4-axis Rotary CNC and Laser: Add a 4th axis to your Snapmaker.
• Ultra-fine Machining: Use Strain Wave Gearing and pack a 100:1 Speed Reducer.
• Easy-to-use: 4-axis Support in Luban

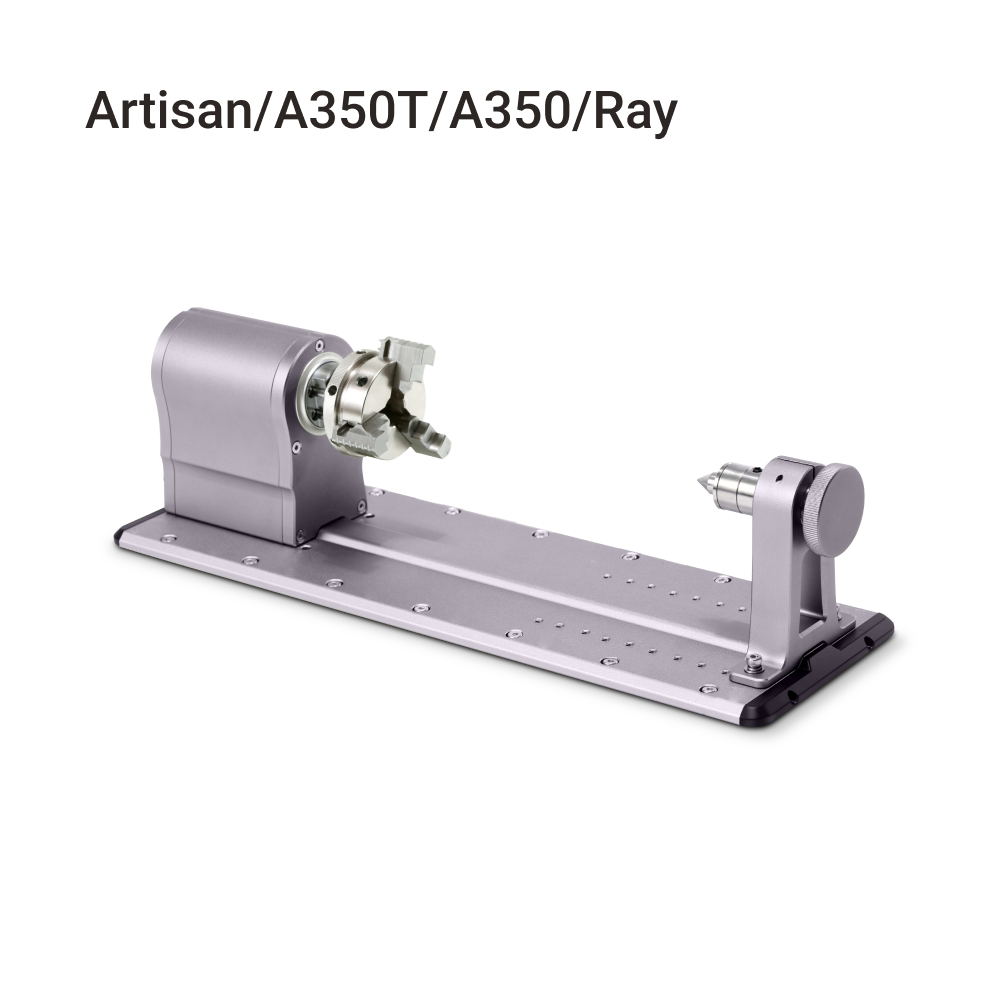

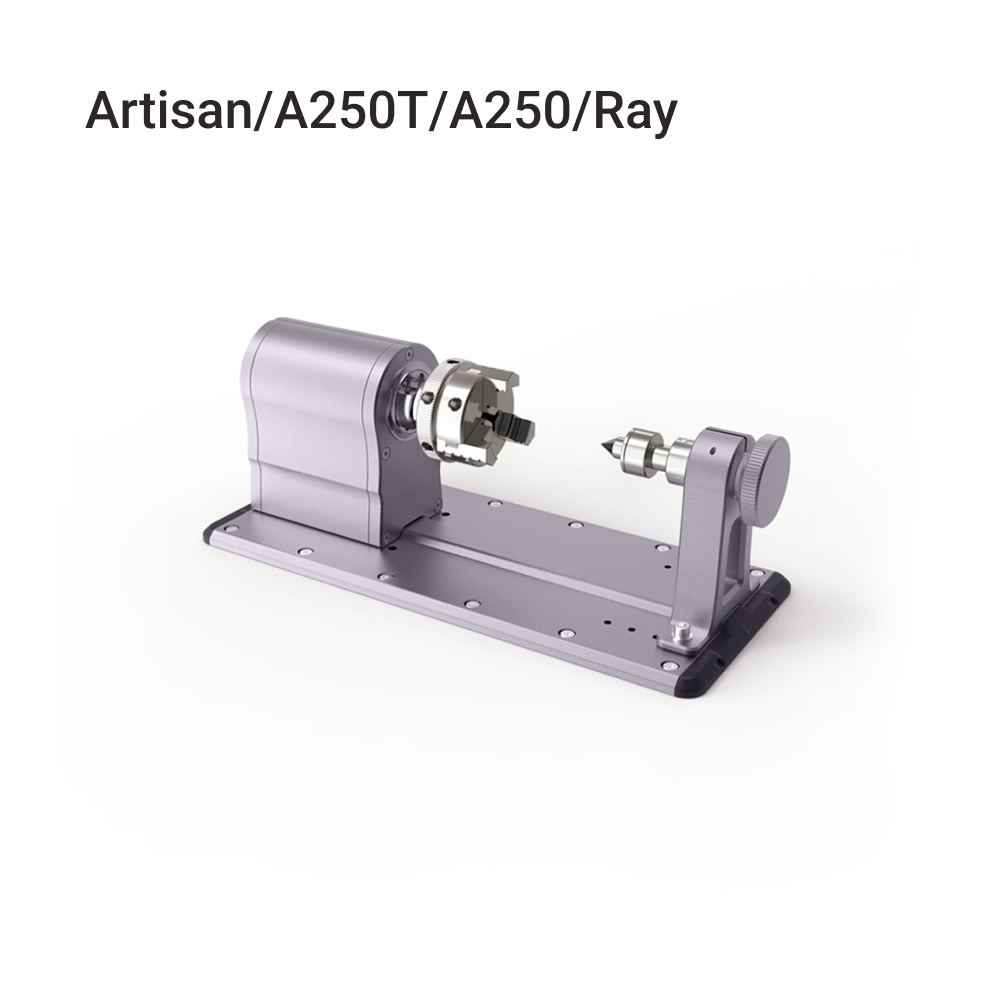

• Compatibility: Snapmaker 2.0 A350T/A350/A250T/A250, Snapmaker Artisan, Snapmaker Ray

Note:
*Due to product version changes, images may differ from the actual product, but functionality remains unaffected. The actual item you receive shall be the final reference.
*To use the Rotary Module on Snapmaker Artisan/Ray, you need to have the Extension cord. Please add it to the cart together.

Quick Start Guide of the Rotary Module on Artisan
Quick Start Guide of the Rotary Module on Ray

Learn More Hide

Recommendations

Filament Bulk Sale

Featured RFID Filament

As low as $17.25/roll (4+ rolls) | $16.10/roll (6+ rolls) | $14.95/roll (10+ rolls)

Payment Methods

Delivery

• CA, UK, AU, JP, KR: Ships from local warehouse · 1–2 business days dispatch · 2–7 business days delivery after dispatch
• NO, CH, IS, RS: Ships from Germany warehouse · 1–2 business days dispatch · 7–20 business days delivery after dispatch
• All other countries/regions: Ships from China warehouse · 1–2 business days dispatch · 3–10 business days delivery after dispatch

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Snapmaker Rotary Module (Harmonic Drive Version)

Make in a new dimension.

The Snapmaker 2.0 Rotary Module adds a 4^th axis to your Snapmaker, making it an extremely mighty desktop CNC machining powerhouse, and much more.

Make in a new dimension.

The Snapmaker 2.0 Rotary Module adds a 4^th axis to your Snapmaker, making it an extremely mighty desktop CNC machining powerhouse, and much more.

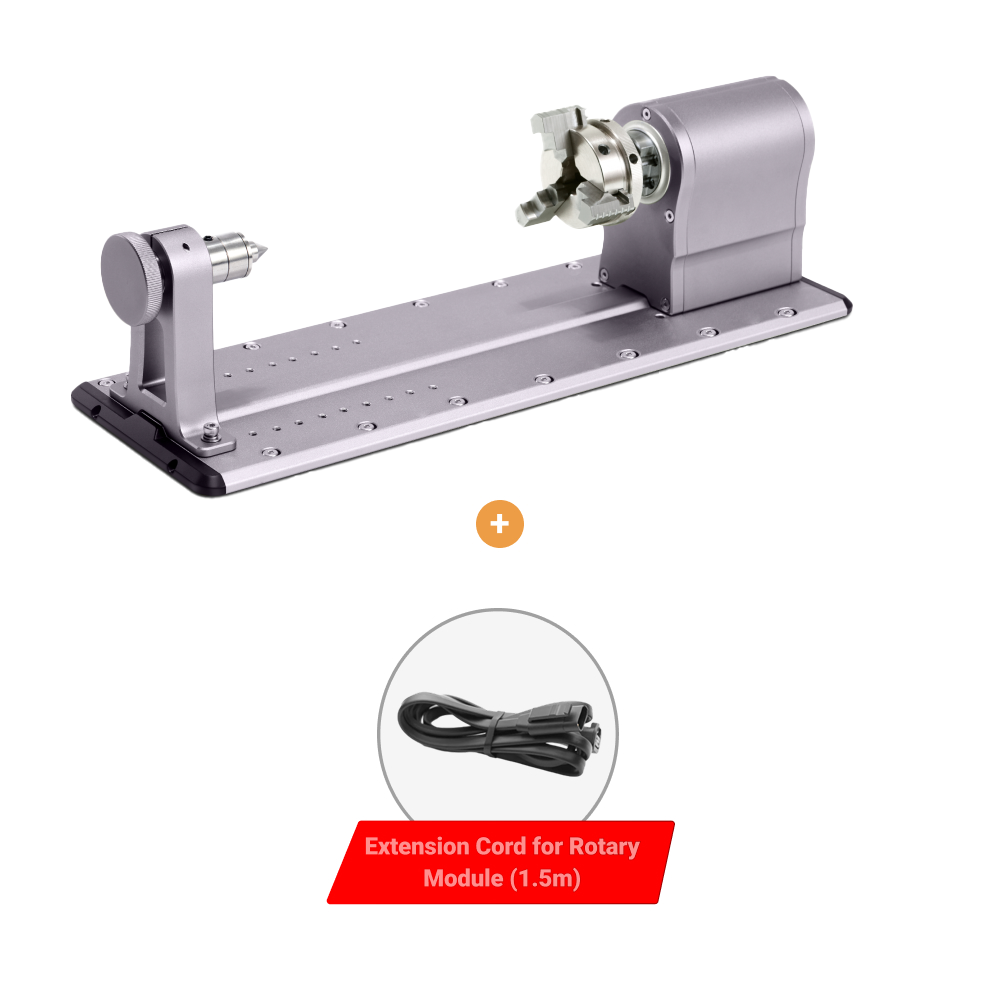

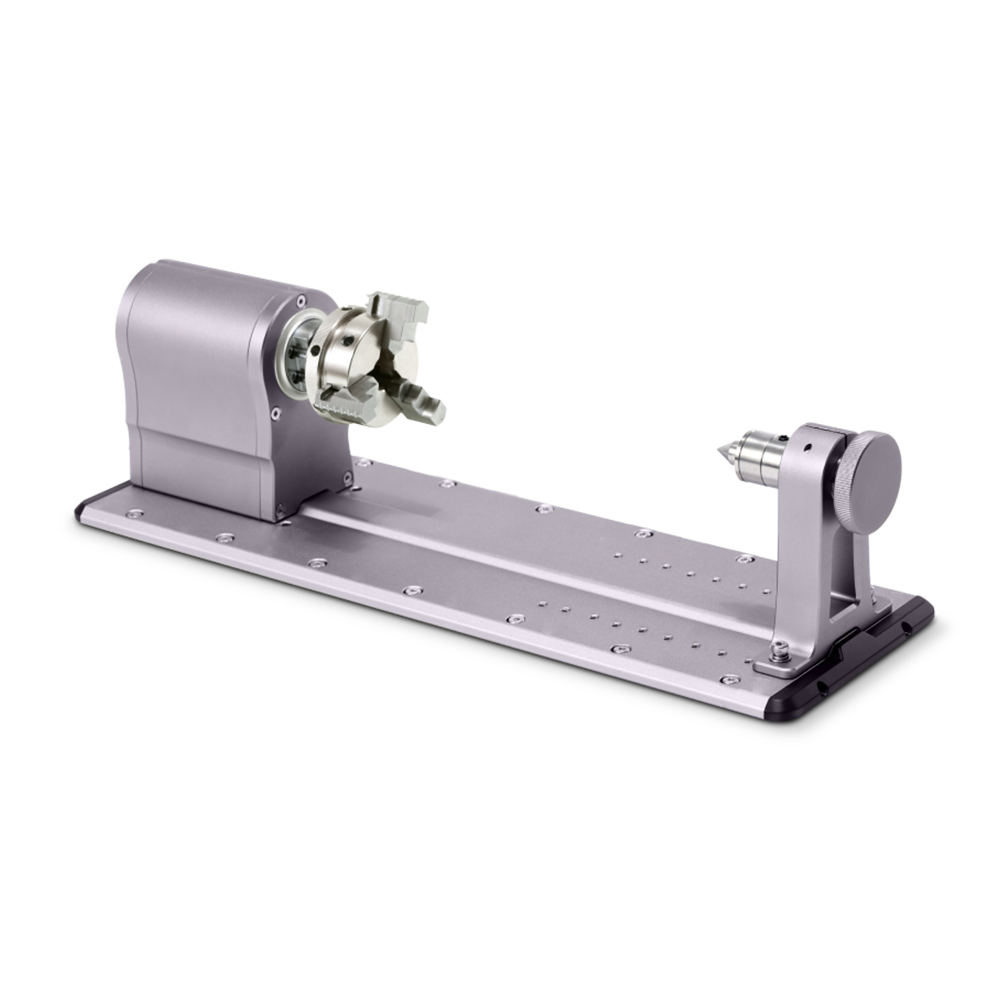

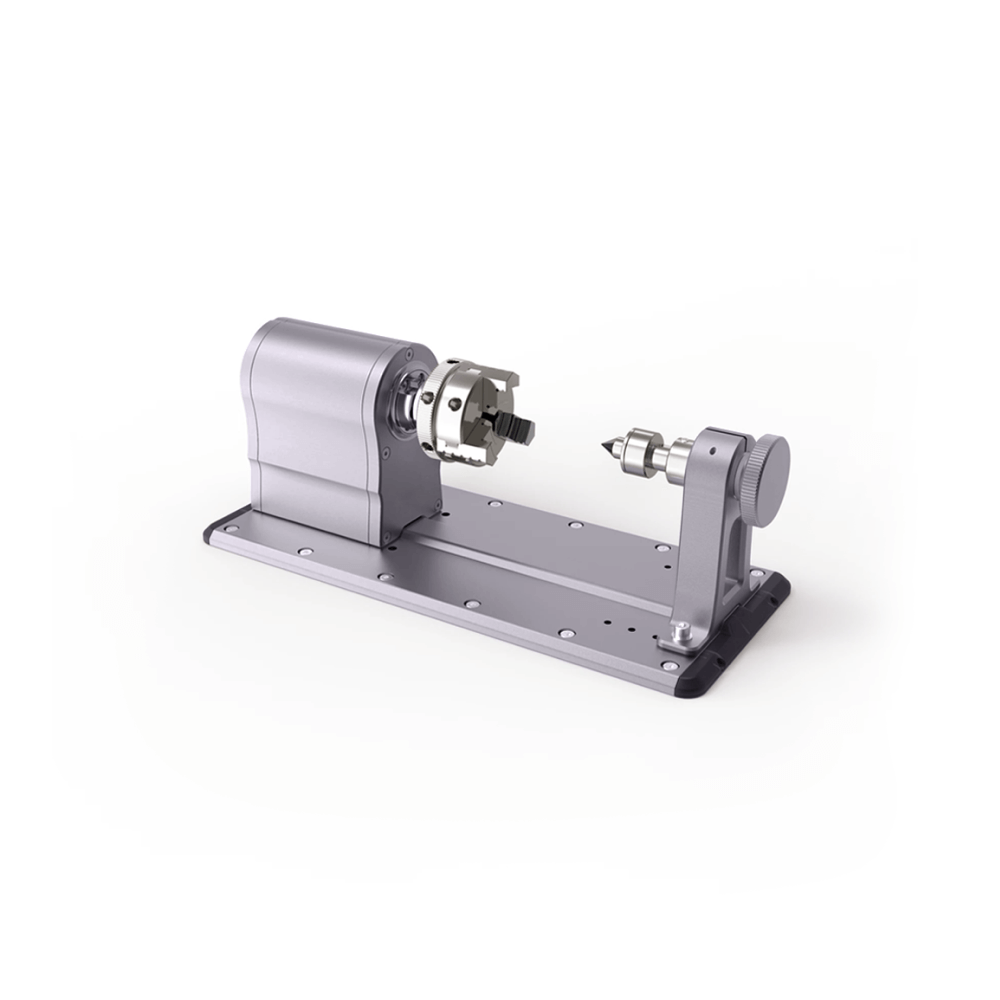

Snapmaker Rotary Module displayed in full view.

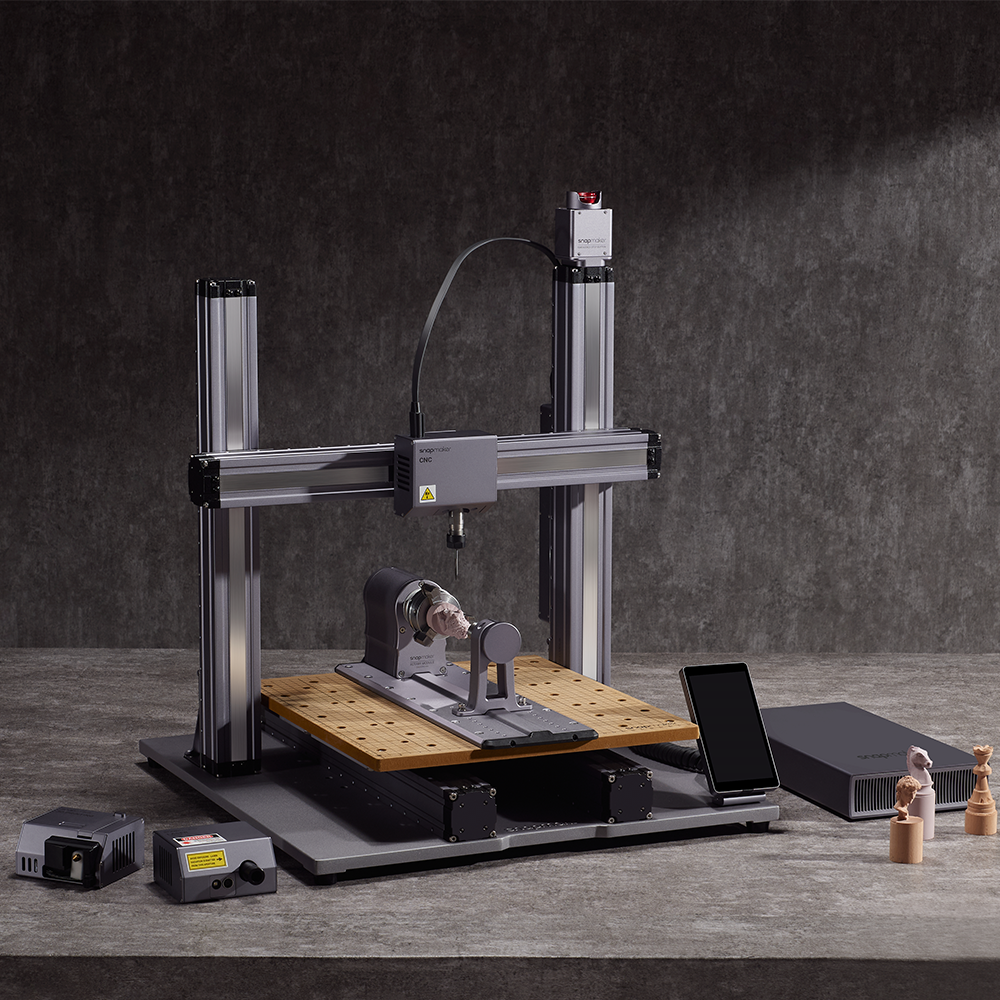

Desktop application of CNC machining.

Rotary module excels at making three-dimensional artworks such as desktop miniatures and small-sized sculptures. Without under extrusion, layer shifting, stringing, or supports of FDM or SLA, the rotary module can accomplish a level of detail and craftsmanship that no other 3D printing technologies can.

Desktop application of CNC machining.

Rotary CNC

FDM

SLA

Rotary CNC

FDM

SLA

Rotary CNC

FDM

SLA

Rotary CNC carving and laser engraving.

Rotary CNC carving and laser engraving.

By adding a 4-axis, the rotary module enables your Snapmaker to rotary CNC carve and laser.

Rotary CNC carving and laser engraving.

By adding a 4-axis, the rotary module enables your Snapmaker to rotary CNC carve and laser.

Rotary CNC

Rotary Laser

Rotary CNC

Rotary Laser

Ultra-fine machining without missing any details.

Ultra-fine machining without missing any details.

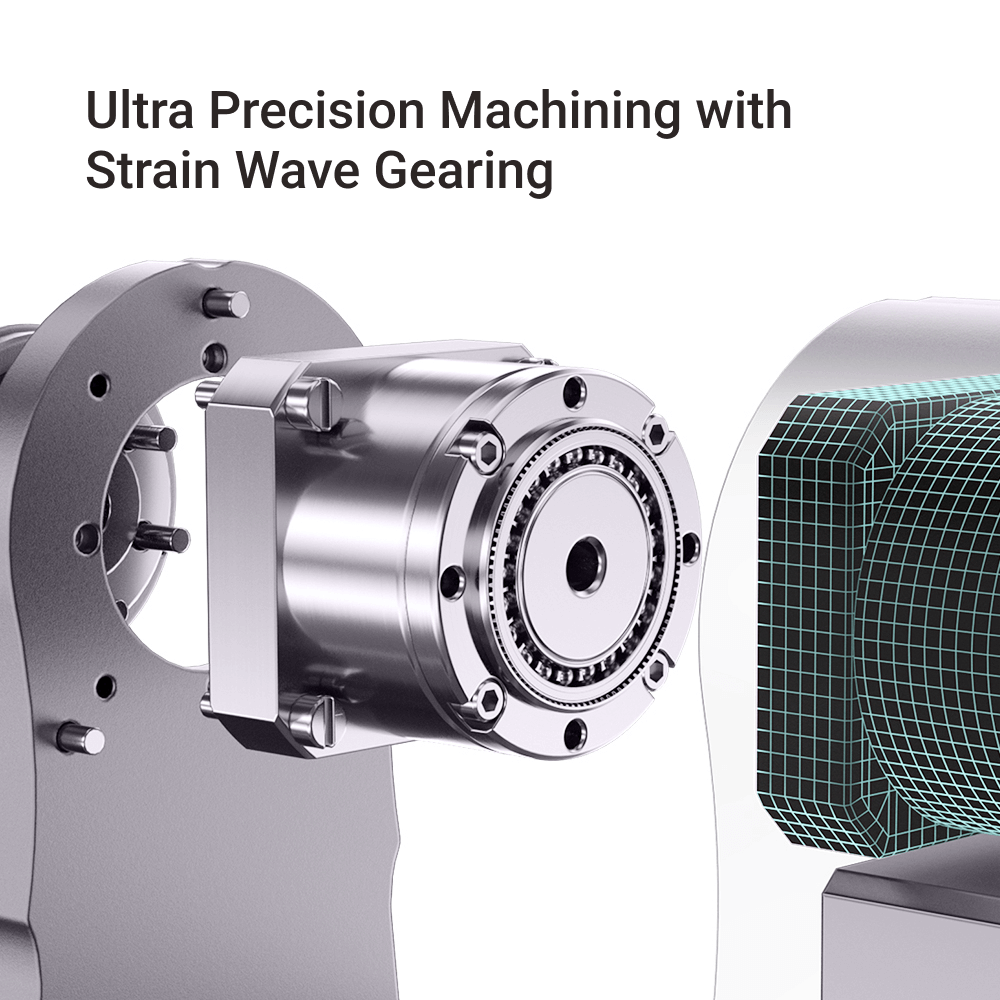

The rotary module uses strain wave gearing and packs a 100:1 speed reducer that converts the power to a lower output speed. This allows the 3-jaw chuck to rotate with a minimum angle of 0.1°. Now, you can make on uneven and irregular surfaces without missing a step.

Detailed view of Snapmaker Rotary Module's strain wave gearing and speed reducer for precise CNC and laser machining.

Precise control at your fingertips.

Precise control at your fingertips.

360° continuous rotation with a maximum angular speed of 45° per second, the rotary module is one fast sculptor. Along with precise control ranging from 0.2, 1, and 5-degree rotation on the touchscreen, you can really see the difference in every motion.

360°

continuous rotation

45°/s

maximum angular speed

0.2°

precise control

360°

continuous rotation

45°/s

maximum angular speed

0.2°

precise control

Add exquisite works to your collection.

Add exquisite works to your collection.

Whether it is a brave dwarf king with wavy beards, a beasty orc chiefdom with legendary weapons or a hollow candle holder, the Snapmaker 2.0 Rotary Module can make them all. Laser engraving you ask? The rotary module can handle that as well, no problem.

Dwari The Dynamiter

Model: A350 + Rotary CNC

Time: 18h

Material: Epoxy tooling board

Dwari The Dynamiter

Model: A350 + Rotary CNC

Time: 18h

Material: Epoxy tooling board

King’s Bust

Model: A350 + Rotary CNC

Time: 12h

Material: Epoxy tooling board

Dwari The Dynamiter

Model: A350 + Rotary CNC

Time: 18h

Material: Epoxy tooling board

Hollow Candle Holder

Model: A350 + Rotary CNC

Time: 16h

Material: Epoxy tooling board

Hollow Candle Holder

Model: A350 + Rotary CNC

Time: 12h

Material: Epoxy tooling board

Siberian Tiger

Model: A350 + Rotary Laser

Time: 2h

Material: Kraft cylinder

Siberian Tiger

Model: A350 + Rotary Laser

Time: 2h

Material: Kraft cylinder

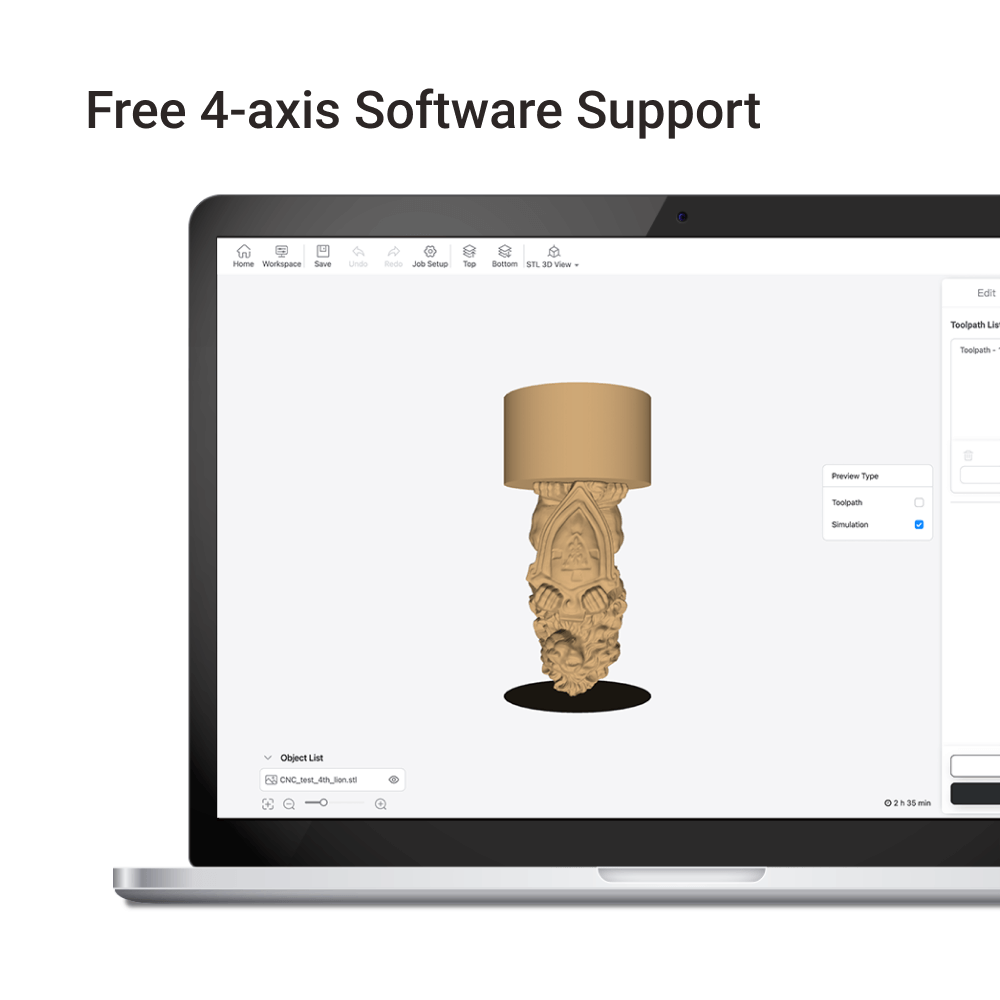

Generate 4-axis projects right in Snapmaker Luban.

Generate 4-axis projects right in Snapmaker Luban.

Snapmaker Luban is the go-to free CAD and CAM software for your 4-axis projects. You can create your designs from scratch in our bundled software with ease.

Carve hollow objects.

Carve hollow objects.

Import STL files and carve hollow objects with uniquely shaped outer shells in our software. Advanced 4-axis linkage support, which allows X, Y, Z, and B axes to move simultaneously, has also been added for full control.

Time Lapse

Meet Origin Assistant, your next intuitive CNC carving experience.

Meet Origin Assistant, your next intuitive CNC carving experience.

The new touchscreen feature, Origin Assistant, smoothens your experience and interaction with rotary carving. Presetting CNC bits, setting origins and Z-offsets, and installing materials are made simple. You can also choose Assist Mode for an easier process or Manual Mode for more flexible controls.

The new touchscreen feature, Origin Assistant, smoothens your experience and interaction with the rotary carving feature. Presetting CNC bits, setting origins and Z-offsets, and installing materials are made simple. You can also choose Assist Mode for faster procedure or Manual Mode for more flexible controls.

Make it your way.

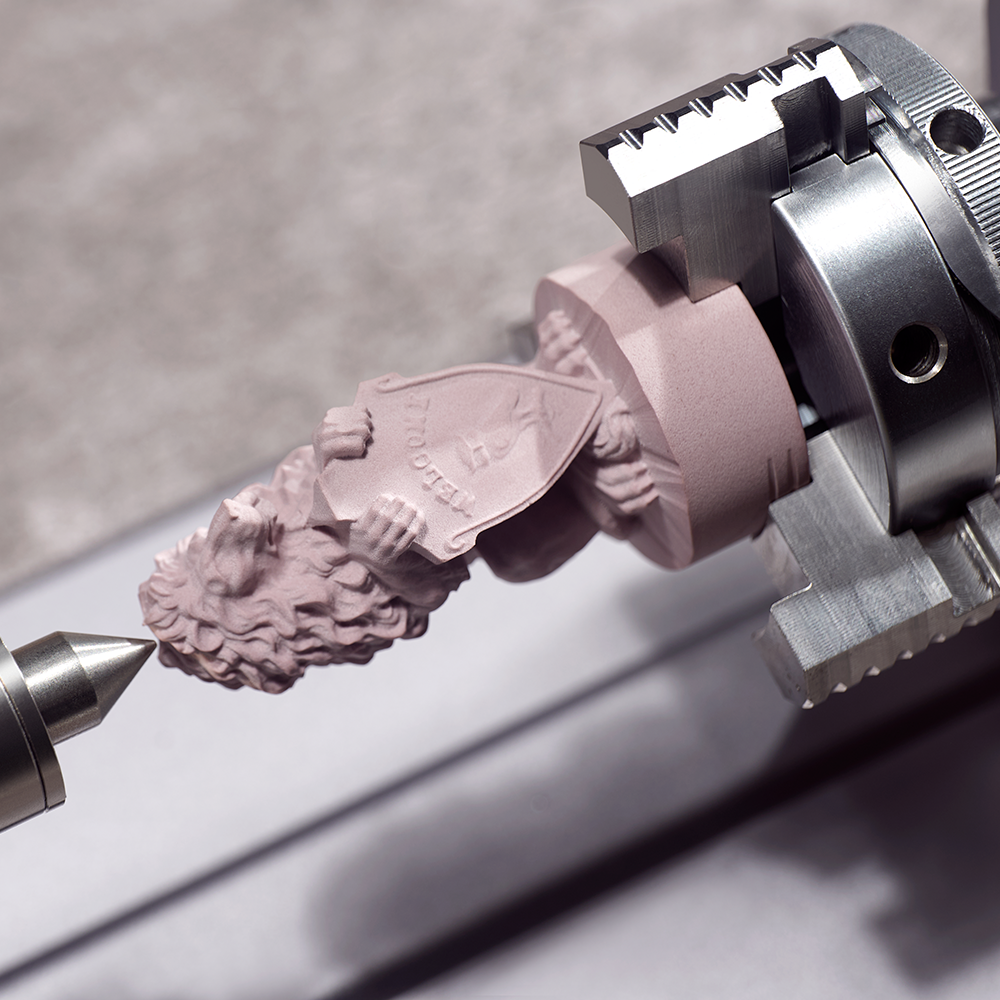

The 3-jaw chuck can grip or support objects with sizes up to 68radius x 170 height(mm) and different shapes, and is swappable with compatible chucks on the market.

The 3-jaw chuck supports objects with sizes up to 170 length × 68 radius (mm) with the tailstock or 225 length × 68 radius (mm) without the tailstock. You can also use a compatible chuck on the market.

Make it your way.

The 3-jaw chuck supports hollow or solid cylindrical objects with sizes up to 170 length × 68 radius (mm) with the tailstock or 225 length × 68 radius (mm) without the tailstock. You can also use a compatible chuck on the market.

The tailstock center holds objects securely in place.

The base plate has holes on both sides so that you can install the headstock and tailstock at different locations.

Multi-material support.

The base plate has holes on both sides so that you can install the headstock and tailstock at different locations.

Multi-material support.

The rotary module supports dozens of materials including wood, tooling boards, plastic, bamboo, leather, fabric, non-transparent acrylics, and more.

Epoxy tooling board

Wood

Non-transparent acrylics

Kraft cylinder (Laser)

Epoxy tooling board

Wood

Non-transparent acrylics

Kraft cylinder (Laser)

About that learning curve.

About that learning curve.

Rotary carving is known for having a bit of a learning curve and not as user friendly to newcomers. That’s why we took a step further to smoothen your transition from 3-axis to 4-axis machining.

Experience

(Higher is better)

Pro

Novice

Rotary CNC a figure

Rotary CNC a miniature tree

Sleek design you’ve always loved.

Rotary laser engrave

Time

(Lower is better)

**For illustrative purposes only.

Sleek design you’ve always loved.

Sleek design you’ve always loved.

The Snapmaker 2.0 Rotary Module carries the same design signature from the Snapmaker 2.0. The metallic grey finish gives it a sophisticated look and feel. Fully anodized aero-grade aluminum is the secret to its durability.

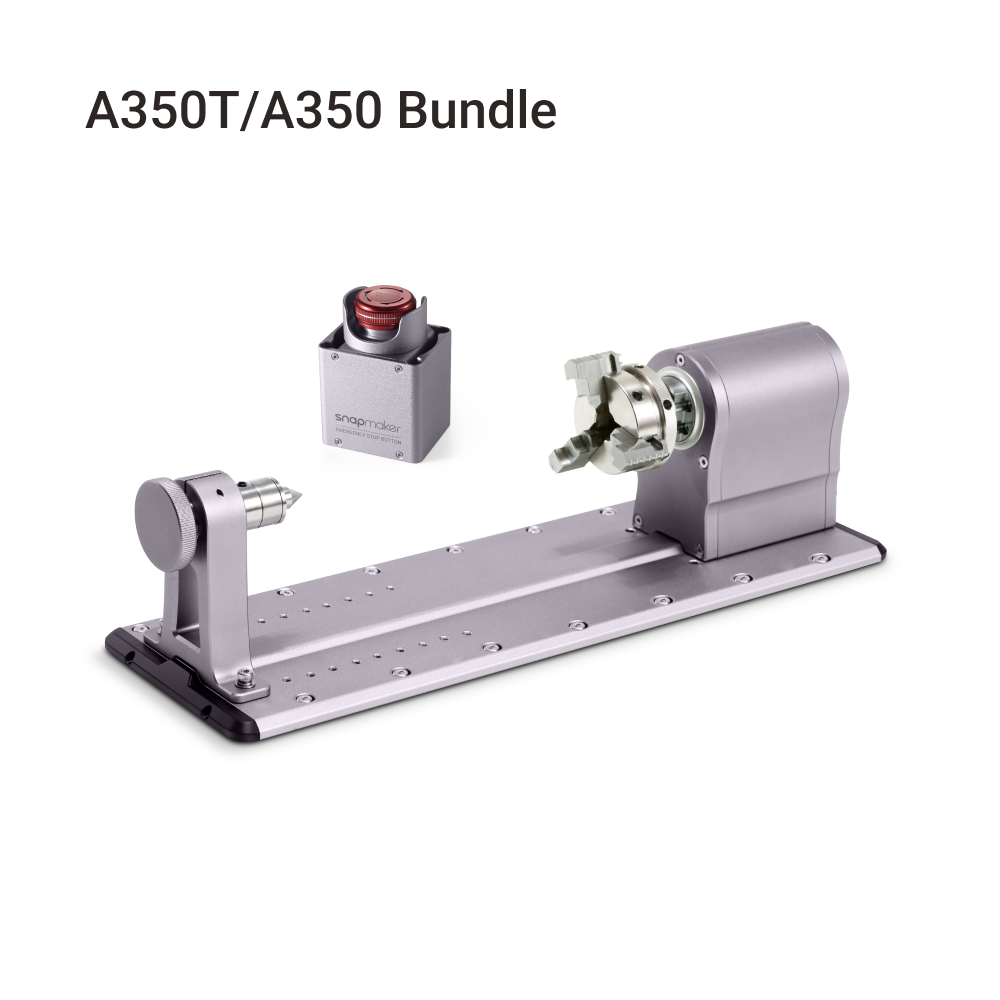

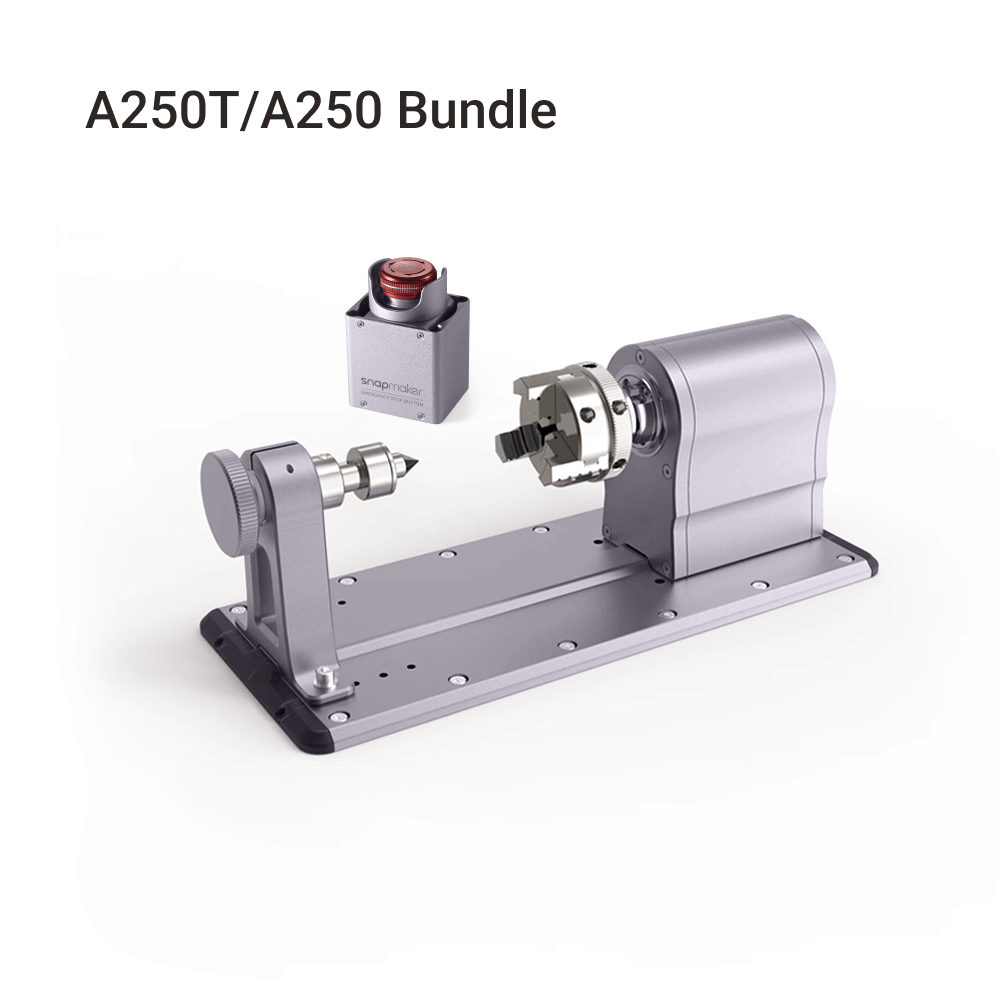

Combine with Snapmaker Emergency Stop Button

Make with confidence.

Make with confidence.

Start rotary carving, something went awry, press the Snapmaker 2.0 Emergency Stop Button, and start fresh again. The Snapmaker 2.0 Emergency Stop Button is designed to provide an extra layer of safety for 3D printing, laser engraving, and CNC carving. Simply press the stop button and your operation will come to a halt.

Peace of mind.

Peace of mind.

The Snapmaker 2.0 Emergency Stop Button can be installed practically anywhere, which means you can easily access the stop button when it matters most. Imagine if you wanted to salvage your art piece or the bit was about to crash into the machine, you pressed the stop button without thinking and further potential harm was prevented.

Glowing status indicators for extra reliability.

Glowing status indicators for extra reliability.

The Snapmaker 2.0 Emergency Stop Button connects to the main controller of the machine. It sends a stop signal to the controller at your command and has glowing status indicators, green for standby, flashing red for activated, and alternating between green and red for connecting, so you know you are protected.

Power off

Standby

Power off

Standby

Activated

Connecting

Activated

Connecting

Everything is one.

Everything is one.

The Snapmaker 2.0 Rotary Module is compatible with all current and future addons. Using the rotary module in combination with the emergency stop button ensures an even safer working environment.

Tech Specs

	A250 Rotary Module	A350 Rotary Module
Dimensions	120 width × 284 depth × 108 height (mm)	120 width × 384 depth × 108 height (mm)
Weight	2.2 kg	2.4 kg
Material Length Range	10 - 70 mm, with tailstock 10 - 125mm, without tailstock	10 - 170 mm, with tailstock 10 - 225mm, without tailstock
Maximum Material Size	70 length × 68 radius (mm), with tailstock 125 length × 68 radius (mm), without tailstock	170 length × 68 radius (mm), with tailstock 225 length × 68 radius (mm), without tailstock
Materials	Aluminum alloy
Maximum Angular Speed	45°/s
Rotation Type	360° continuous
Rotational Speed Conversion	100: 1
Precision	0.1° Angle Precision 0.2° Precise Control
Inward-clamping Range	1 - 30 radius (mm）
Outward-clamping Range	10 - 50 radius (mm）
Supported Software	Snapmaker Luban, Autodesk Fusion 360, Vectric Aspire
Supported Materials for CNC	Wood, tooling and modeling board, plastic, bamboo, wax, more being tested
Supported Materials for Laser	Wood, leather, plastic, fabric, paper, non-transparent acrylic, more being tested
Supported File Types	.stl, .bmp, .svg, .dxf, .jpg, .jpeg, .png

	Snapmaker 2.0 Emergency Stop Button
Dimensions	48 width × 40 depth × 68 height (mm), without conversion plate 48 width × 48 depth × 78 height (mm), with conversion plate
Weight	0.2 kg
Rated Voltage	24 V
Rated Current	0.01 A

Parts List (A350)

Quick Start Guide × 1

Rotary Headstock × 1

Tailstock × 1

A350 Base × 1

Material for Laser × 3

Material for CNC × 3

Straight Groove V-bit × 1

M4 × 8 Hex Socket Head Screw × 6

M4 × 14 Hex Socket Head Screw × 14

M4 × 10 Hex Socket Head Screw × 4

Chuck Wrench × 2

AB Glue × 1

Quick Start Guide × 1

Rotary Headstock × 1

Tailstock × 1

A350 Base × 1

Material for Laser × 3

Material for CNC × 3

Straight Groove V-bit × 1

M4 × 8 Hex Socket Head Screw × 6

M4 × 14 Hex Socket Head Screw × 14

M4 × 10 Hex Socket Head Screw × 4

Chuck Wrench × 2

AB Glue × 1

*Special thanks to MiniaturesOfmadness for providing us with such amazing dwarf miniatures. If you are interested in the original print files, please go to their website for more information.

*The product design is subject to change due to iterations.

1. Auto Focus and Manual Focus for laser enabled

Ultra-fine machining without missing any details.

Precise control at your fingertips.

360°

continuous rotation

45°/s

maximum angular speed

0.2°

precise control

Add exquisite works to your collection.

Dwari The Dynamiter

Model: A350 + Rotary CNC

Time: 18h

Material: Epoxy tooling board

King’s Bust

Model: A350 + Rotary CNC

Time: 12h

Material: Epoxy tooling board

Hollow Candle Holder

Model: A350 + Rotary CNC

Time: 16h

Material: Epoxy tooling board

Siberian Tiger

Model: A350 + Rotary Laser

Time: 2h

Material: Kraft cylinder

Generate 4-axis projects right in Snapmaker Luban.

Snapmaker Luban is the go-to free CAD and CAM software for your 4-axis projects. You can create your designs from scratch in our bundled software with ease.

Carve hollow objects.

Time Lapse

Meet Origin Assistant, your next intuitive CNC carving experience.

Make it your way.

The tailstock center holds objects securely in place.

The base plate has holes on both sides so that you can install the headstock and tailstock at different locations.

Multi-material support.

The rotary module supports dozens of materials including wood, tooling boards, plastic, bamboo, leather, fabric, non-transparent acrylics, and more.

Epoxy tooling board

Wood

Non-transparent acrylics

Kraft cylinder (Laser)

About that learning curve.

Rotary carving is known for having a bit of a learning curve and not as user friendly to newcomers. That’s why we took a step further to smoothen your transition from 3-axis to 4-axis machining.

Experience

(Higher is better)

Pro

Novice

Rotary CNC a figure

Rotary CNC a miniature tree

Rotary laser engrave

Time

(Lower is better)

**For illustrative purposes only.

Sleek design you’ve always loved.

Combine with Snapmaker Emergency Stop Button

Make with confidence.

Peace of mind.

Glowing status indicators for extra reliability.

Power off

Standby

Activated

Connecting

Everything is one.

The Snapmaker 2.0 Rotary Module is compatible with all current and future addons. Using the rotary module in combination with the emergency stop button ensures an even safer working environment.

Tech Specs

	A250 Rotary Module	A350 Rotary Module
Dimensions	120 width × 284 depth × 108 height (mm)	120 width × 384 depth × 108 height (mm)
Weight	2.2 kg	2.4 kg
Material Length Range	10 - 70 mm, with tailstock 10 - 125mm, without tailstock	10 - 170 mm, with tailstock 10 - 225mm, without tailstock
Maximum Material Size	70 length × 68 radius (mm), with tailstock 125 length × 68 radius (mm), without tailstock	170 length × 68 radius (mm), with tailstock 225 length × 68 radius (mm), without tailstock
Materials	Aluminum alloy
Maximum Angular Speed	45°/s
Rotation Type	360° continuous
Rotational Speed Conversion	100: 1
Precision	0.1° Angle Precision 0.2° Precise Control
Inward-clamping Range	1 - 30 radius (mm）
Outward-clamping Range	10 - 50 radius (mm）
Supported Software	Snapmaker Luban, Autodesk Fusion 360, Vectric Aspire
Supported Materials for CNC	Wood, tooling and modeling board, plastic, bamboo, wax, more being tested
Supported Materials for Laser	Wood, leather, plastic, fabric, paper, non-transparent acrylic, more being tested
Supported File Types	.stl, .bmp, .svg, .dxf, .jpg, .jpeg, .png

	Snapmaker 2.0 Emergency Stop Button
Dimensions	48 width × 40 depth × 68 height (mm), without conversion plate 48 width × 48 depth × 78 height (mm), with conversion plate
Weight	0.2 kg
Rated Voltage	24 V
Rated Current	0.01 A

Parts List (A350)

Quick Start Guide × 1

Rotary Headstock × 1

Tailstock × 1

A350 Base × 1

Material for Laser × 3

Material for CNC × 3

Straight Groove V-bit × 1

M4 × 8 Hex Socket Head Screw × 6

M4 × 14 Hex Socket Head Screw × 14

M4 × 10 Hex Socket Head Screw × 4

Chuck Wrench × 2

AB Glue × 1

*Special thanks to MiniaturesOfmadness for providing us with such amazing dwarf miniatures. If you are interested in the original print files, please go to their website for more information.

*The product design is subject to change due to iterations.

1. Auto Focus and Manual Focus for laser enabled

Frequently Asked Questions

1. What is the maximum size of material that the Snapmaker Rotary Module can hold?

The maximum material size depends on the machine model and whether the tailstock is used:
With Tailstock: Up to 170mm length × 68mm radius
Without Tailstock: Up to 225mm length × 68mm radius
A250 Model: 70mm length (with tailstock), 125mm (without tailstock)
A350 Model: 170mm length (with tailstock), 225mm (without tailstock) This range offers flexibility for different projects, and the 3-jaw chuck provides secure clamping for precise operations.

2. Can the Rotary Module work with cuboid materials?

Yes, the Rotary Module supports both cylindrical and cuboid materials. However, Snapmaker Luban processes materials as cylinders by default, so follow these steps for cuboid materials:
1. Ensure the model size is smaller than the material to prevent the bit from colliding with the machine.
2. Set the diameter in Luban to the diagonal length of the cuboid's bottom surface.
For consistent results, cylindrical materials are still recommended.

3. What safety measures should be taken with the Snapmaker Rotary Module?

First, ensure that everyone nearby wears laser safety goggles. Then, avoid touching moving or rotating parts during operation. Always turn off the machine before making adjustments or assembly. Monitor the machine while it’s in use. If an emergency occurs, immediately press the Emergency Stop Button to halt all activity and ensure safety.

4. Can I use third-party chucks for the Rotary Module?

Yes, the Snapmaker Rotary Module supports compatible chucks with an M14 thread size, including a 4-jaw chuck available on the market. However, using third-party accessories may void the Snapmaker limited warranty as it does not cover damages caused by non-Snapmaker components.

5. Why is setting the work origin important for the Snapmaker Rotary Module?

Properly setting the work origin in Snapmaker Luban ensures that the tool follows the correct path, preventing collisions with the material or machine components. Accurate origin settings are essential for achieving precise cuts and engravings during 4-axis operations.

6. How to Use Laser Function or CNC Function with Rotary Module?

To use the Laser or CNC function with the Snapmaker Rotary Module:

1. Setup: Attach the module and configure it in Snapmaker Luban.
2. Laser Engraving: Calibrate the focal length, set the work origin, and generate G-code.
3. CNC Operation: Attach the appropriate bit, configure material settings, and secure the workpiece.
For detailed steps, refer to the official guides:
Using Laser with Rotary Module
Using CNC with Rotary Module

7. How do I install the Snapmaker Rotation Module (Harmonic Drive Edition)?

Installation is simple. Connect your assembled rotary module using the supplied CAN cable, and secure it to the CNC stage. Refer to the detailed steps in the official installation manual for guidance on calibration and setup.

Stay Updated!

Snapmaker Rotary Module (Harmonic Drive Version)

Featured RFID Filament

Featured RFID Filament

PETG-CF Filament (RFID) - 1kg

PLA Translucent Filament (RFID) - 1kg

PLA-CF Filament (RFID) - 1kg

PETG HF Filament (RFID) - 1kg

SnapSpeed PLA Filament (RFID) - 1kg

Matte PLA Filament (RFID) - 1kg

Silk PLA Filament (RFID) - 1kg

Silk Dual-Color PLA Filament (RFID) - 1kg

PETG Translucent Filament (RFID) - 1kg

Wood PLA Filament (RFID) - 1kg

TPU 95A HF Filament (RFID) - 1kg

Make in a new dimension.

Desktop application of CNC machining.

Rotary CNC carving and laser engraving.

Ultra-fine machining without missing any details.

Precise control at your fingertips.

Add exquisite works to your collection.

Generate 4-axis projects right in Snapmaker Luban.

Carve hollow objects.

Meet Origin Assistant, your next intuitive CNC carving experience.

Make it your way.

Multi-material support.

About that learning curve.

Sleek design you’ve always loved.

Make with confidence.

Peace of mind.

Glowing status indicators for extra reliability.

Everything is one.

1. What is the maximum size of material that the Snapmaker Rotary Module can hold?

2. Can the Rotary Module work with cuboid materials?

3. What safety measures should be taken with the Snapmaker Rotary Module?

4. Can I use third-party chucks for the Rotary Module?

5. Why is setting the work origin important for the Snapmaker Rotary Module?

6. How to Use Laser Function or CNC Function with Rotary Module?

7. How do I install the Snapmaker Rotation Module (Harmonic Drive Edition)?

Snapmaker Rotary Module (Harmonic Drive Version)
