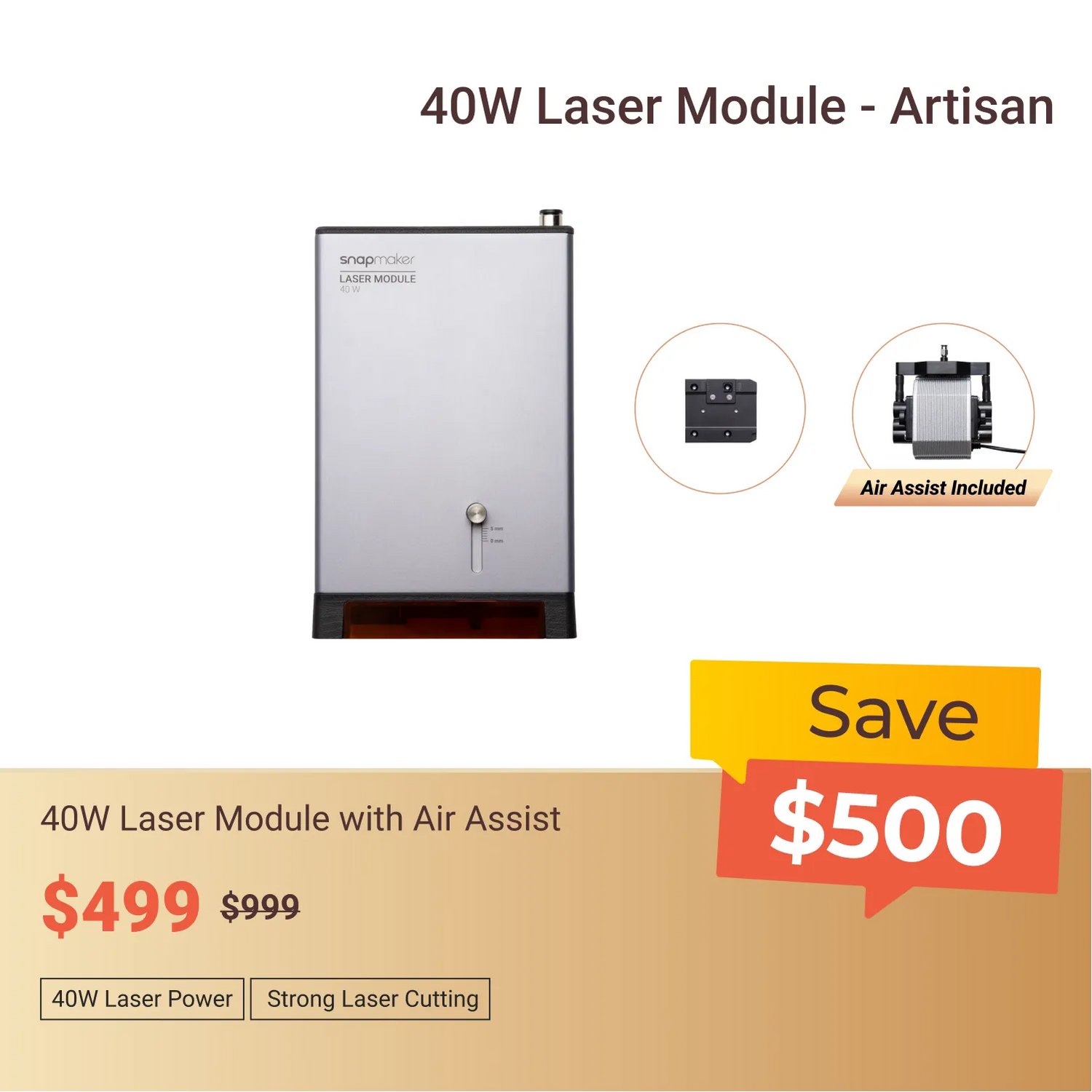

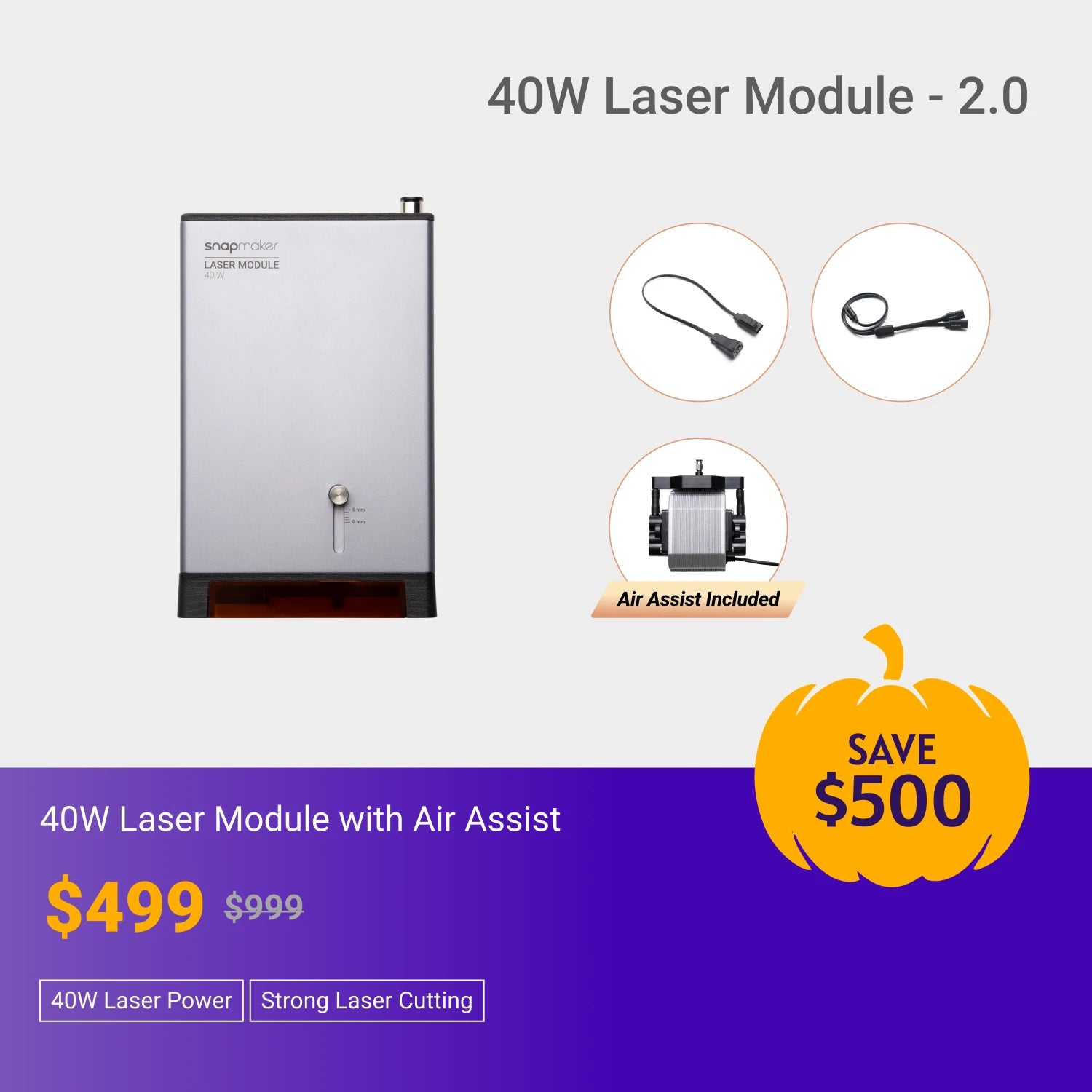

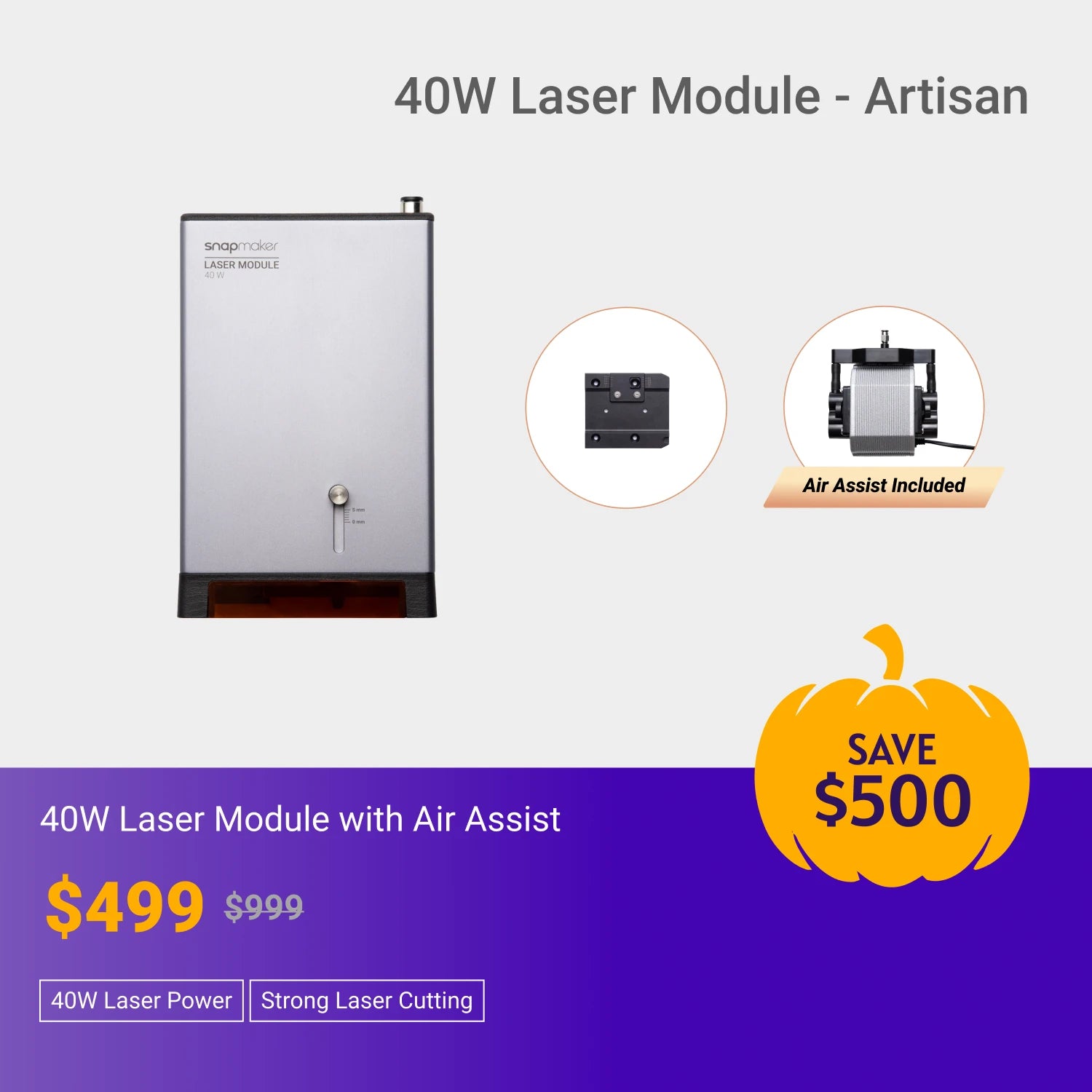

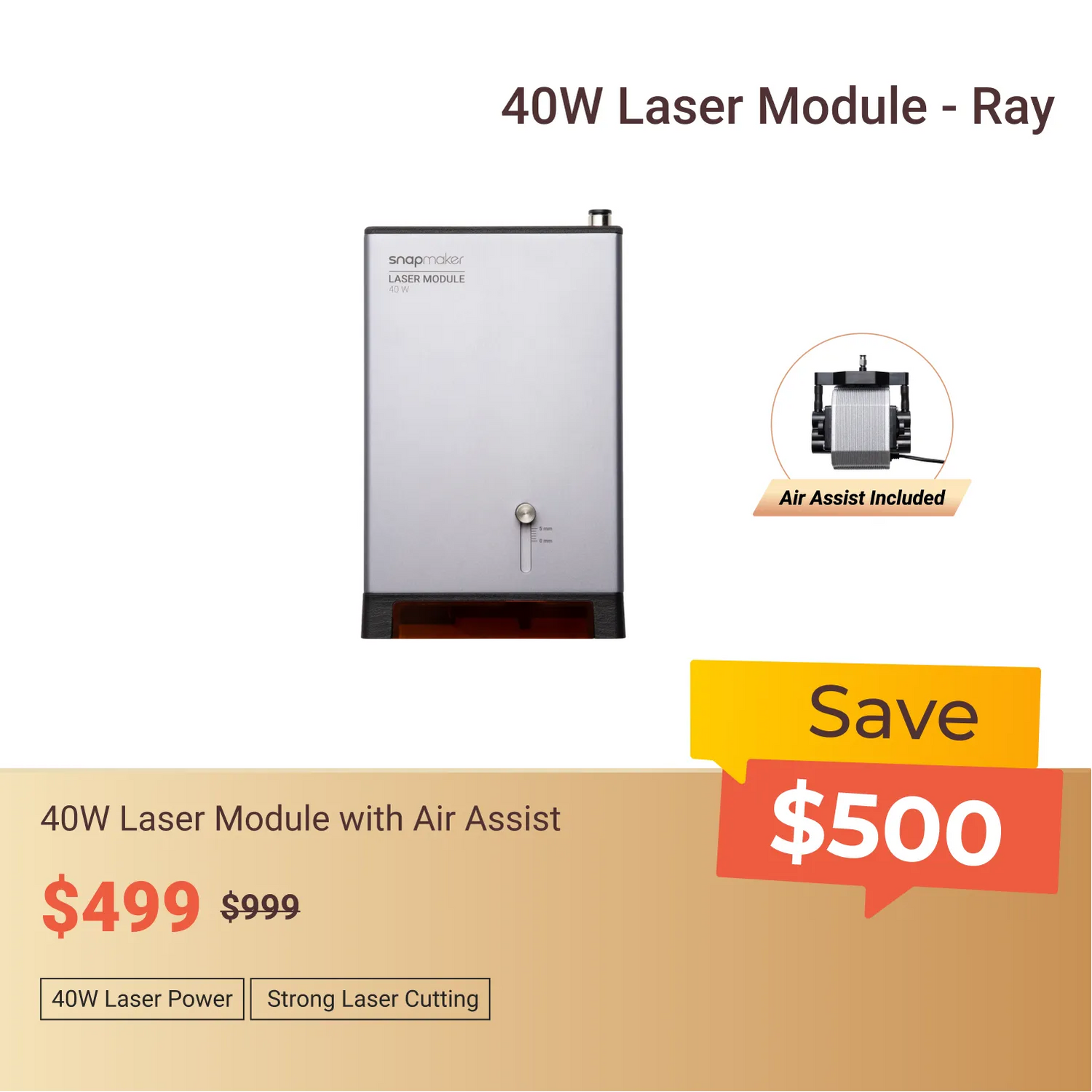

Snapmaker 20W & 40W Laser Module with Air Assist

$799.00 USD $999.00

The 20W Laser Module for 2.0 in NO&CH have been sold out.

⚠️To use the 20W/40W Laser Module on Snapmaker Artisan 3D Printer, you must acquire the Artisan Enclosure. The Enclosure is not available for online purchase. Kindly contact our customer service team at info@snapmaker.com to make a purchase.

Product Overview
• Strong Laser Cutting Capabilities: 20W/40W Laser Power
• Smart Air Assist: The equipped Air Assist Pump can be controlled via Luban.
• Laser Safety Shield: Reduce laser radiation.
• Compatibility: Snapmaker 2.0 A350T/A350/A250T/A250/F350/F250, Snapmaker 2.0 A150 (only compatible with 20W), Snapmaker Artisan, Snapmaker Ray

Learn More

Machine
Model

Payment methods

  • payment-icon
  • payment-icon
  • payment-icon
  • payment-icon
  • payment-icon
  • payment-icon
  • PayPal
  • payment-icon
  • payment-icon

Delivery
Orders Will Be Shipped In 1-3 Business Days.
  • payment-icon
  • payment-icon
  • payment-icon
Orders Will Be Shipped In 1-3 Business Days.
Free shipping on orders over $99 for CA and UK.
Orders for CA, AU, UK, NO & CH will be shipped locally within 3-7 days, while other regions will be shipped from China.

Earn [points_amount] when you buy this item.

Features

20W & 40W Laser Power

20mm Pinewood Cutting in one pass (40W)
15mm Basswood Plywood Cutting in one pass (40W)
10mm Basswood Plywood Cutting in one pass (20W)

Smart Air Assist

Prevent charring, improve the quality of your work, and keep laser lens clean. Air Assist can be controlled via Luban, saving you the bother of manually turning it on or off for different layers.

1000+ Ready-to-use Templates in Luban

Provide an extensive library of preset templates, including common patterns, shapes, and icons, for you to come up with a design in minutes.

Easy to Focus

Calibrate the focus by inputting material thickness on screen and run auto-focus or focus Laser with Focus Lever.

Laser Safety Shield

Reduce laser radiation. Together with the use of Enclosure for 2.0, Artisan or Ray, the laser hazards can be reduced from Class 4 to Class 1.

Transform Even More Ideas Into Reality

Specification

40W Laser Module

20W Laser Module


Laser Output Power

40W

20W


Laser Electric Power

125W

65W


Laser Type

450 - 460nm Semi-conductor

450 - 460nm Semi-conductor


Dimensions

105mm × 166mm × 75mm

92mm × 141mm × 65mm


Weight

1.26kg

0.81kg


Maximum Work Speed[1]

Snapmaker 2.0: 100mm/s
Snapmaker Artisan: 200mm/s

Snapmaker 2.0: 100mm/s
Snapmaker Artisan: 200mm/s


Maximum Cutting Speed[2]

20mm/s

10mm/s


Work Area

400mm × 400mm (Artisan)

320mm × 350mm (A350/A350T/F350)

230mm × 250mm (A250/A250T/F250)

400mm × 400mm (Artisan)

320mm × 350mm (A350/A350T/F350)

230mm × 250mm (A250/A250T/F250)


Frame Material

Aluminum Alloy

Aluminum Alloy


Supported Engraving Materials

Basswood, Pinewood, Plywood, Beech,Walnut, Bamboo, MDF, Painted Metal,Tinplate, Stainless Steel, Anodized Aluminum, Dark Glass, Slate, Brick, Ceramic, Jade, Marble, Shale, Leather, Fabric, Canvas,Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded)

Basswood, Pinewood, Plywood, Beech,Walnut, Bamboo, MDF, Painted Metal,Tinplate, Stainless Steel, Anodized Aluminum, Dark Glass, Slate, Brick, Ceramic, Jade, Marble, Shale, Leather, Fabric, Canvas,Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded)


Supported Cutting Materials

Basswood, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Leather, Fabric,Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded), Stainless Steel (0.1mm)

Basswood, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Leather, Fabric,Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded)


Maximum Thickness of one-pass cutting

15mm Basswood Plywood

10mm Basswood Plywood


Laser Spot Dimensions

0.1mm × 0.15mm

0.08mm × 0.1mm


Supported Design File

STL, SVG, JPEG, PNG, JPG, BMP, DXF, SNAPLZR

STL, SVG, JPEG, PNG, JPG, BMP, DXF, SNAPLZR


Supported Processing File

NC

NC


Air Assist


Camera Capture

×

×


Focus Method

2.0/Artisan: Auto-focus through manual measuring or Material Touching Measuring (using Focus Lever)

2.0/Artisan: Auto-focus through manual measuring or Material Touching Measuring (using Focus Lever)


Overheat Protection


Orientation Detection


Compatibility

Artisan (3-in-1 version), Ray, A350T/A350, A250T/A250, F350/F250, Air Purifier, Rotary Module, CAN Hub, Emergency Stop Button, Enclosure for 2.0

Artisan (3-in-1 version), Ray, A350T/A350, A250T/A250, F350/F250, A150, Air Purifier, Rotary Module, CAN Hub, Emergency Stop Button, Enclosure for 2.0


Notes:
[1] Depending on your material, the work speed might vary.

[2] The data is obtained based on the 3mm Basswood Plywood performing one pass cutting. Depending on your material, the cutting speed might vary.

Comparison

Weight

1.26kg


Maximum Engraving Speed

Snapmaker 2.0: 100 mm/s
Snapmaker Artisan: 200 mm/s


Maximum Cutting Speed

20 mm/s


Maximum Thickness of one-pass cutting

15 mm Basswood Plywood


400 mm × 400 mm (Artisan)

Work Area

320 mm × 350 mm (A350/A350T/F350)

230 mm × 250 mm (A250/A250T/F250)


Laser Spot Dimensions

0.1mm × 0.15mm


Air Assist


Camera Capture

×


Weight

0.81kg


Maximum Engraving Speed

Snapmaker 2.0: 100 mm/s
Snapmaker Artisan: 200 mm/s


Maximum Cutting Speed

10 mm/s


Maximum Thickness of one-pass cutting

10 mm Basswood Plywood


400 mm × 400 mm (Artisan)

Work Area

320 mm × 350 mm (A350/A350T/F350)

230 mm × 250 mm (A250/A250T/F250)


Laser Spot Dimensions

0.08mm × 0.1mm


Air Assist


Camera Capture

×


Weight

0.63kg


Maximum Engraving Speed

Snapmaker 2.0: 100 mm/s
Snapmaker Artisan: 200 mm/s


Maximum Cutting Speed

5 mm/s


Maximum Thickness of one-pass cutting

5 mm Basswood Plywood


400 mm × 400 mm (Artisan)

Work Area

320 mm × 350 mm (A350/A350T/F350)

230 mm × 250 mm (A250/A250T/F250)


Laser Spot Dimensions

0.05mm × 0.2mm


Air Assist

×


Camera Capture


In the Box (40W Laser Module)

40W Laser Module × 1

Air Assist Pump × 1

Air Tube × 1

Boosted Toolhead Cable (for Snapmaker 2.0 user only) × 1

Air Assist Pump Conversion Cable (for Snapmaker 2.0 user only) × 1

Cotton Swab × 5

Cable Tie × 1

M4 × 12 Screw × 3

M4 × 8 Screw × 6

Basswood Plywood × 1

Calibration Card × 1

Online Tutorial Guide Card × 1

Laser Lens Protector   × 1

In the Box (20W Laser Module)

20W Laser Module × 1

Air Assist Pump × 1

Air Tube × 1

Air Assist Pump Conversion Cable (for Snapmaker 2.0 user only) × 1

Cotton Swab × 5

Cable Tie × 1

M4 × 12 Screw × 3

M4 × 8 Screw × 6

Basswood Plywood × 1

Calibration Card × 1

Online Tutorial Guide Card × 1

Laser Lens Protector   × 1

Frequently Asked Questions

1. What is the maximum cutting thickness of 20W & 40W Laser Module?

20W laser module: 10mm Basswood Plywood in one pass.
40W laser module: 15mm Basswood Plywood in one pass.

2. Does the 20W & 40W Laser Module have a camera function like the 10W Laser Module?

No, the 20W & 40W Laser Modules do not include a built-in camera function like the 10W Laser Module. Instead, they utilize a Focus Lever for laser platform height calibration, which offers a simple and reliable workflow. Rest assured, you'll achieve incredible results and a smooth experience with these new laser modules.

3. If I have both the Snapmaker 2.0 machine and the Snapmaker Artisan machine, which one should I choose?

The 1064nm We recommend choosing the Snapmaker 2.0 machine with the 20W & 40W Laser Module. When you purchase the Snapmaker 2.0 machine, you will be provided with a Boosted Toolhead Cable and an Air Assist Pump Conversion Cable. These cables are essential for the proper functioning of the 20W and 40W Laser Module, as there may be compatibility issues without them.
However, Snapmaker Artisan & Ray machines don't need these extra cables. If you have mistakenly selected the wrong machine type when placing your order, you can contact support at info@snapmaker.com to make the needed changes.

4. What are the specs of 10W & 20W & 40W Laser Module?

[1] Depending on your material, the work speed might vary.
[2] The data is obtained based on the 3mm Basswood Plywood performing one pass cutting. Depending on your material, the cutting speed might vary.

Features

20W & 40W Laser Power

20mm Pinewood Cutting in one pass (40W)
15mm Basswood Plywood Cutting in one pass (40W)
10mm Basswood Plywood Cutting in one pass (20W)

Smart Air Assist

Prevent charring, improve the quality of your work, and keep laser lens clean. Air Assist can be controlled via Luban, saving you the bother of manually turning it on or off for different layers.

1000+ Ready-to-use Templates in Luban

Provide an extensive library of preset templates, including common patterns, shapes, and icons, for you to come up with a design in minutes.

Easy to Focus

Calibrate the focus by inputting material thickness on screen and run auto-focus or focus Laser with Focus Lever.

Laser Safety Shield

Reduce laser radiation. Together with the use of Enclosure for 2.0, Artisan or Ray, the laser hazards can be reduced from Class 4 to Class 1.

Transform Even More Ideas Into Reality

Specification

40W Laser Module

Laser Output Power

40W


Laser Electric Power

125W


Laser Type

450 - 460nm Semi-conductor


Dimensions

105mm × 166mm × 75mm


Weight

1.26kg


Maximum Work Speed[1]

Snapmaker 2.0: 100mm/s
Snapmaker Artisan: 200mm/s


Maximum Cutting Speed[2]

20mm/s


400mm × 400mm (Artisan)

Work Area

320mm × 350mm (A350/A350T/F350)

230mm × 250mm (A250/A250T/F250)


Frame Material

Aluminum Alloy


Supported Engraving Materials

Basswood, Pinewood, Plywood, Beech,Walnut, Bamboo, MDF, Painted Metal,Tinplate, Stainless Steel, Anodized Aluminum, Dark Glass, Slate, Brick, Ceramic, Jade, Marble, Shale, Leather, Fabric, Canvas,Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded)


Supported Cutting Materials

Basswood, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Leather, Fabric,Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded), Stainless Steel (0.1mm)


Maximum Thickness of one-pass cutting

15mm Basswood Plywood


Laser Spot Dimensions

0.1mm × 0.15mm


Supported Design File

STL, SVG, JPEG, PNG, JPG, BMP, DXF, SNAPLZR


Supported Processing File

NC


Air Assist


Camera Capture

×


Focus Method

2.0/Artisan: Auto-focus through manual measuring or Material Touching Measuring (using Focus Lever)


Overheat Protection



Orientation Detection


Compatibility

Artisan (3-in-1 version), Ray, A350T/A350, A250T/A250, F350/F250, Air Purifier, Rotary Module, CAN Hub, Emergency Stop Button, Enclosure for 2.0


20W Laser Module

Laser Output Power

20W


Laser Electric Power

65W


Laser Type

450 - 460nm Semi-conductor


Dimensions

92mm × 141mm × 65mm


Weight

0.81kg


Maximum Work Speed[1]

Snapmaker 2.0: 100mm/s
Snapmaker Artisan: 200mm/s


Maximum Cutting Speed[2]

10mm/s


400mm × 400mm (Artisan)

Work Area

320mm × 350mm (A350/A350T/F350)

230mm × 250mm (A250/A250T/F250)


Frame Material

Aluminum Alloy


Supported Engraving Materials

Basswood, Pinewood, Plywood, Beech,Walnut, Bamboo, MDF, Painted Metal,Tinplate, Stainless Steel, Anodized Aluminum, Dark Glass, Slate, Brick, Ceramic, Jade, Marble, Shale, Leather, Fabric, Canvas,Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded)


Supported Cutting Materials

Basswood, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Leather, Fabric,Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded)


Maximum Thickness of one-pass cutting

10mm Basswood Plywood


Laser Spot Dimensions

0.08mm × 0.1mm


Supported Design File

STL, SVG, JPEG, PNG, JPG, BMP, DXF, SNAPLZR


Supported Processing File

NC


Air Assist


Camera Capture

×


Focus Method

2.0/Artisan: Auto-focus through manual measuring or Material Touching Measuring (using Focus Lever)


Overheat Protection


Orientation Detection


Compatibility

Artisan (3-in-1 version), Ray, A350T/A350, A250T/A250, F350/F250, A150, Air Purifier, Rotary Module, CAN Hub, Emergency Stop Button, Enclosure for 2.0


Notes:
[1] Depending on your material, the work speed might vary.

[2] The data is obtained based on the 3mm Basswood Plywood performing one pass cutting. Depending on your material, the cutting speed might vary.

Comparison

Weight

1.26kg


Maximum Engraving Speed

Snapmaker 2.0: 100mm/s
Snapmaker Artisan: 200mm/s


Maximum Cutting Speed

20 mm/s


Maximum Thickness of one-pass cutting

15mm Basswood Plywood


400mm × 400mm (Artisan)

Work Area

320mm × 350mm (A350/A350T/F350)

230mm × 250mm (A250/A250T/F250)


Laser Spot Dimensions

0.1mm × 0.15mm


Air Assist


Camera Capture

×


Weight

0.81kg


Maximum Engraving Speed

Snapmaker 2.0: 100mm/s
Snapmaker Artisan: 200mm/s


Maximum Cutting Speed

10mm/s


Maximum Thickness of one-pass cutting

10mm Basswood Plywood


400mm × 400mm (Artisan)

Work Area

320mm × 350mm (A350/A350T/F350)

230mm × 250mm (A250/A250T/F250)


Laser Spot Dimensions

0.08mm × 0.1mm


Air Assist


Camera Capture

×


Weight

0.63kg


Maximum Engraving Speed

Snapmaker 2.0: 100mm/s

Snapmaker Artisan: 200mm/s


Maximum Cutting Speed

5mm/s


Maximum Thickness of one-pass cutting

5mm Basswood Plywood


400mm × 400mm (Artisan)

Work Area

320mm × 350mm (A350/A350T/F350)

230mm × 250mm (A250/A250T/F250)


Laser Spot Dimensions

0.05mm × 0.2mm


Air Assist

×


Camera Capture


In the Box (40W Laser Module)

40W Laser
Module
 × 1

Air Assist Pump × 1

Air Tube × 1

Boosted Toolhead Cable (for Snapmaker 2.0 user only) × 1

Air Assist Pump Conversion Cable (for Snapmaker 2.0 user only) × 1

Cotton Swab × 5

Cable Tie × 1

M4 × 12 Screw × 3

M4 × 8 Screw × 6

Basswood Plywood
× 1

Calibration Card × 1

Online Tutorial Guide Card  × 1

Laser Lens Protector × 1

Base Plate × 1

AC Power Cable × 1

USB Cable × 1

In the Box (20W Laser Module)

20W Laser
Module
× 1

Air Assist Pump × 1

Air Tube × 1

Air Assist Pump Conversion Cable (for Snapmaker 2.0 user only) × 1

Cotton Swab × 5

Cable Tie × 1

M4 × 12 Screw
× 3

M4 × 8 Screw
× 6

Basswood Plywood
× 1

Calibration Card × 1

Online Tutorial Guide Card  × 1

Laser Lens Protector × 1

Base Plate × 1

AC Power Cable × 1

USB Cable × 1

Frequently Asked Questions

1. What is the maximum cutting thickness of 20W & 40W Laser Module?

20W laser module: 10mm Basswood Plywood in one pass.
40W laser module: 15mm Basswood Plywood in one pass.

2. Does the 20W & 40W Laser Module have a camera function like the 10W Laser Module?

No, the 20W & 40W Laser Modules do not include a built-in camera function like the 10W Laser Module. Instead, they utilize a Focus Lever for laser platform height calibration, which offers a simple and reliable workflow. Rest assured, you'll achieve incredible results and a smooth experience with these new laser modules.

3. If I have both the Snapmaker 2.0 machine and the Snapmaker Artisan machine, which one should I choose?

We recommend choosing the Snapmaker 2.0 machine with the 20W & 40W Laser Module. When you purchase the Snapmaker 2.0 machine, you will be provided with a Boosted Toolhead Cable and an Air Assist Pump Conversion Cable. These cables are essential for the proper functioning of the 20W and 40W Laser Module, as there may be compatibility issues without them.
However, Snapmaker Artisan & Ray machines don't need these extra cables. If you have mistakenly selected the wrong machine type when placing your order, you can contact support at info@snapmaker.com to make the needed changes.

4. What are the specs of 10W & 20W & 40W Laser Module?

Notes:
[1] Depending on your material, the work speed might vary.
[2] The data is obtained based on the 3mm Basswood Plywood performing one pass cutting. Depending on your material, the cutting speed might vary.

Snapmaker 20W & 40W Laser Module with Air Assist

Snapmaker 20W & 40W Laser Module with Air Assist

From $299.00 USD $599.00
(5)
The 20W Laser Module for 2.0 in NO&CH have been sold out.

⚠️To use the 20W/40W Laser Module on Snapmaker Artisan 3D Printer, you must acquire the Artisan Enclosure. The Enclosure is not available for online purchase. Kindly contact our customer service team at info@snapmaker.com to make a purchase.

Product Overview
• Strong Laser Cutting Capabilities: 20W/40W Laser Power
• Smart Air Assist: The equipped Air Assist Pump can be controlled via Luban.
• Laser Safety Shield: Reduce laser radiation.
• Compatibility: Snapmaker 2.0 A350T/A350/A250T/A250/F350/F250, Snapmaker 2.0 A150 (only compatible with 20W), Snapmaker Artisan, Snapmaker Ray

Machine

  • Snapmaker 2.0
  • Snapmaker Artisan
  • Snapmaker Ray

Model

  • 40W Laser Module
  • 20W Laser Module
View product
